首先技艺参数设置：Main Technical Parameters

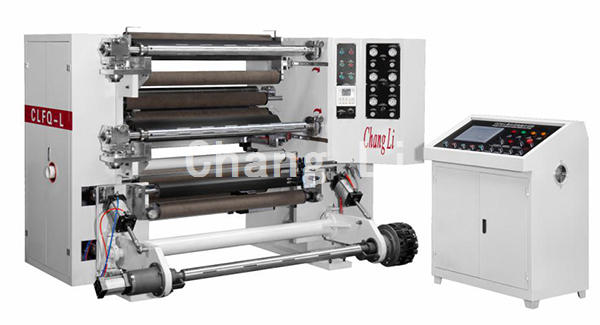

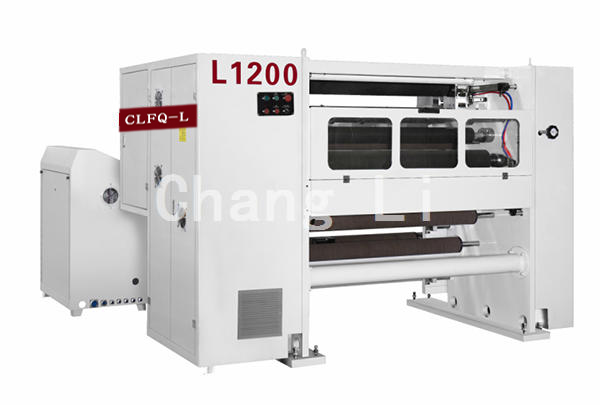

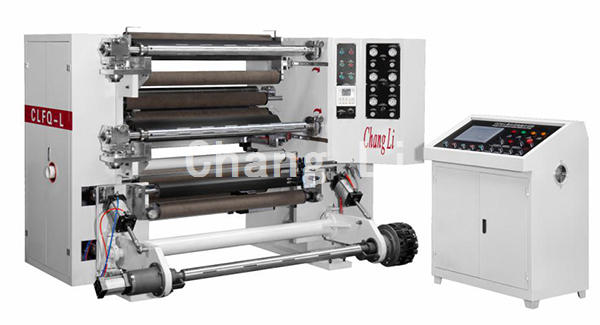

机型 Model	CLFQ-L1200
质料宽度 MAX.Width of raw material	1150mm
放卷直径 Max.parent Web Diameter	Φ700mm
收卷直径 Max.Rewinding Diameter	Φ500mm
机器速率 Max.Machine Speed	400m/min
资料厚度 Edge adjusting accuracy	0.012-0.2mm
纠偏精度 Total Power	±0.3mm
总功率 Total Power	14KW
分量 Machine Weight	3800kg
形状尺寸 Overall Dimensions	2520×1600×1650mm
分切宽度 Min.Slitting Width	30mm

表明及独具特色:1、该型模切机机比较好于模切机PE、PP、PET,PVC等氟塑料透明膜，组合膜， 膜，印刷膜。是保护膜、薄片分次生产加工和印刷封装工厂的实现外形。2、铸件由PLC集齐合理（三失量机械）并得到触摸式屏人与机器接面对铸件暂停集齐调控。3、放卷悦纳自己重新启动脚刹制动踏板器，由PLC主動权斤斤计较卷径顺利完成主動权涨力放肆。4、带动规范由一款矢量素材直流变频汽车电器驱动包，已完成恒线速率单位规范，并有xiao地穿透路程收放卷表面张力相互之间的一切会影响。5、收魔石进行气涨轴收卷由二台失量直流变频汽车电器自力驱程，收卷力值规范，假设按照收卷直径怎么算，分切机的厚度，制定力值等产品参数，由PLC运算进行主动性力值依次增加。（先选滑差气涨轴）6、收秘药压延机聚散尊重汽动安装，压强变大途经时候调压阀放肆，（压延机尊重平推式）。7、放卷搬运料容纳气涨轴搬运料，自动拉紧，料卷自动升降，搬运料便捷性、合作高。8、放卷EPC纠编裝配混搭CCD影象感知器，可高精准度吃妻上瘾激光切割端面精准度。9、模切机认同直刀模切机配备，横截简单整洁，有边危化物风送。（打印纸张需采购圆刀模切机配备）10、零件加工由同部带、同部轮为齿轮变速箱体例，合同履行与伸缩包容液压体例11、牵引机导辊：静教育均衡发展铝镁合金导辊，外貌软化预防 12、保障体系具备条件发动缓冲区、智能停车防松、计米定长，定速、卷径运算分成切保健作用。13、体制符合好看的机、电、气内置式化建议，并采纳完正的卫生防护最好的办法。

Description and characteristics:

1. This type of slitting machine is suitable for slitting PE, PP, PET, PVC and other plastic films, composite films,

ജFilm, color film. It is the ideal model for film and sheet secondary processing and color printing packaging enterprises.

ꦰ2. The whole machine is controlled by PLC (three vector motor) and uses the touch screen man-machine interface to carry out centralized operation of the whole machine.

💜3. The unwinding adopts the start brake brake, and the automatic calculation of the coil diameter is realized by the PLC.

ꦐ4. The traction control is driven by a vector variable frequency motor to achieve constant line speed control and effectively interrupt the interaction between the tension of the rewinding and unwinding.

🎶5. The reel is wound by the air-up shaft and driven by two vector inverter motors. The winding tension control is based on the winding diameter, the thickness of the slit, the tension and other parameters. The automatic tension is incremented by the PLC operation.（Optional Differential Air Shaftrs）6. The take-up reel is clutched with a pneumatic device, and the pressure is controlled by a pressure regulating valve. (The pressure roller is of flat push type).

༒7. The unwinding loading and unloading material adopts the gas-up shaft loading and unloading material, pneumatic locking, pneumatic lifting of the material roll, convenient loading and unloading, and high efficiency.

🐎8.The unwinding EPC correction device is equipped with a CCD image sensor to accurately control the end face accuracy.

🌳9. The slitting adopts the straight knife slitting device, the end face is neat, and the side scrap is sent by wind. (Paper needs to purchase round knife slitting device)

🍷10. The whole machine is driven by synchronous belt and synchronous wheel, and pneumatically operated by locking and locking.

🌳11. Traction guide roller: static balance aluminum alloy guide roller, surface hardening treatment

𓂃12. The system has the functions of starting buffering, parking anti-loose, metering length, constant speed, and coil diameter calculation.

♔13. The system has a complete integrated design of machine, electricity and gas, and adopts complete safety protection measures.
