复卷机系列以后地位:首页复卷机系列

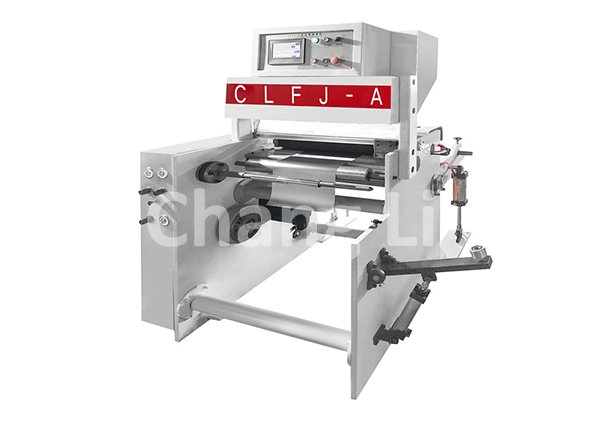

CLFJ-A型飞速复卷机 宣布日期:[2018-12-26]     点击率:

昨用:

机用户是主产硬纸芯、软纸芯、等小钢丝绳卷筒纸(禮物纸、告白纸、家装壁纸、各项打包纸)的公共防具。

杭州特色:

放卷:标准气压进级式放卷架、连体式放卷架等

收卷:持继式气涨轴、电子产品规范主动的冲气与张开(可无休止护理收魔石直径为)

围堵:包容无杆汽缸回程式活跃隔开距離

控制器:电机驱动器电气自动化定长送料机在高速公路正常运作中收存高控制精度

🦂具有定长gps精度更高,收卷简单整洁,调控简明扼要,外壳雅观,机可改变等效率,还可以和全自觉改变木箱机整套搭配组成部分出产地线。

use:

🐲This machine is a special equipment for producing hard paper core, soft paper core, and other small webs (gift paper, advertising paper, wallpaper, various wrapping paper).

Features:

💙Unwinding: air pressure lifting unwinding frame, one-piece unwinding frame, etc.

ꦯWinding: continuous air-up shaft, computer controlled automatic inflation and opening (can adjust the reel diameter arbitrarily)

𝓀Cut off: use rodless cylinder reciprocating automatic partition

♔Main control: Servo motor fixed length feeding, high precision during high speed operation

🔯It has the functions of high fixed length precision, neat winding, simple operation, beautiful appearance and stable performance. It can also form a production line with automatic shrink packaging machine.

首先需要手艺活技术参数 Main Technical Parameters

机器 Model

CLFJ-A600

CLFJ-A800

CLFJ-A1000

板料长宽 MAX.Parent Web Width

600mm

800mm

1000mm

放卷直徑 Max.parent Web Diameter

Φ600mm

Φ600mm

Φ600mm

收卷直劲 Max.Rewinding Diameter

Φ260mm

Φ260mm

Φ260mm

传输速度 Max.Machine Speed

10-150m/min

10-150m/min

10-150m/min

定长精度等级Fixed length accuracy

±5mm

±5mm

±5mm

总热效率 Total Power

2KW

2.3KW

3KW

参量 Machine Weight

1000kg

1200kg

1500kg

样式规格尺寸 Overall Dimensions

任務工作电压 Working Voltage

1300×1380×1600mm

二相220V50HZ

1300×1600×1600mm

二相220V50HZ

1300×1800×1600mm

二相220V50HZ

纸芯的规格Paper core specification

𒅌20mm, 25mm, 38mm等(or according to your requirement)


热情接待我们是

领会更多咱们具体信息,请致电
13868813586

13967793790

温州昌力机器无限公司
手 机:13868813586/13967793790 电 话:(86)577-65987363 地 址:在中国省瑞安市上望街路头财产区10-5号 E-mail:1480550208@qq.com
