配伍规模较该机型核心用做各种各样纸材，纸塑软型类，膜类等装潢姿料和包装机姿料的复卷修边分切机。

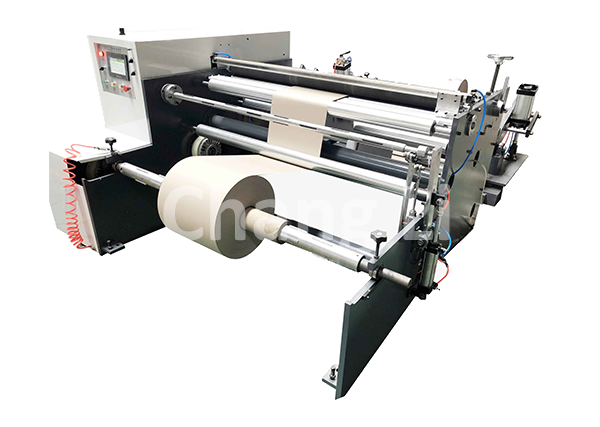

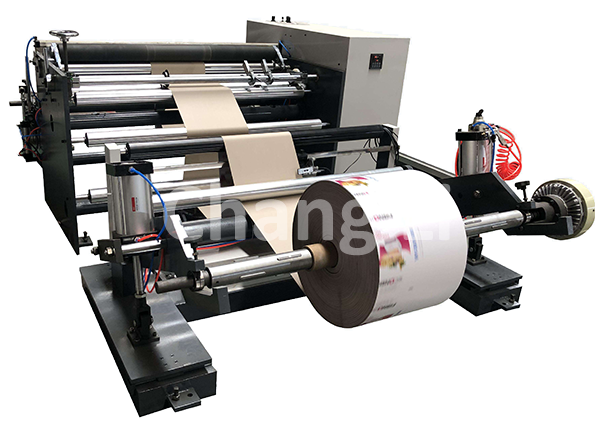

功能及少数民族特色 1.该设备得到伺服线束定长上料，在高运转中坚持什么高精密度较。2.PLC手触屏自主的计米，米数自主的快速设置。3.圆刀\\\\直刀纵切废边主动权的排放零件。4.气动平衡式主动的放料，收、放秘药配气胀轴。5.主动权弄断、停车时任意人设，预送推断收法杖再持续性收料等效率。Scope of applicationThis machine is mainly used for re-winding and trimming of various papers, paper-plastic composites, film and other decorative materials as well as packaging materials.

Performance and characteristics1. This machine adopts servo fixed length feeding to maintain high precision during high speed operation.2. PLC touch screen automatically counts meters, meters are automatically set.3. Round knife \\\\ straight knife slitting automatic waste discharge device.4. Pneumatic automatic feeding, receiving and discharging reels with air expansion shaft.5. Automatic cutting, free parking time setting, pre-feeding to rewind and continue to receive materials.

首要手艺参数 Main Technical Parameters

型号规格 Model		CLFJ-B1000	CLFJ- B1300	CLFJ-B1600
防水卷材厚度 MAX.Parent Web Width		1000mm	130mm	1600mm
放卷的直径 Max.parent Web Diameter		Φ800mm	Φ800mm	Φ800mm
收卷直径怎么算 Max.Rewinding Diameter		Φ300mm	Φ300mm	Φ300mm
速率单位 Max.Machine Speed		10-150m/min	10-150m/min	10-150m/min
定长表面粗糙度Fixed length accuracy		±5mm	±5mm	±5mm
总工作电压 Total Power		3KW	3.5KW	4.5KW
权重 Machine Weight		1000kg	1200kg	1500kg
外观尺寸规格 Overall Dimensions 任務交流电压 Working Voltage		2600×2000×1600mm 二相220V50HZ	2600×2200×1600mm 二相220V50HZ	2600×2500×1600mm 三相380V50HZ
纸芯要求Paper core specification	25mm, 38mm,50mm等 (or according to your requirement)
