好用规模较 :机用户首要任务主要用于各纸制品进行包装，无防布，纸塑复合材料类，无球膜类等装潢的材质和进行包装的材质的修边复卷。

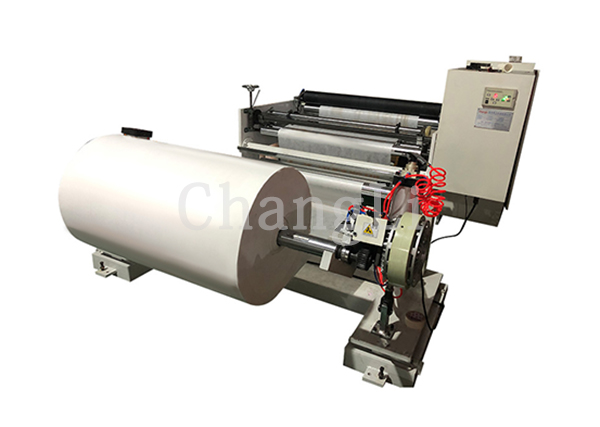

包能及独特的 :1.滤油机采纳系列伺服定长送料机，在高速路启动中始终如一高高精准度。2.PLC触模屏自主的计米，米数自主的确定。3.气动平衡式自动送料，收、放魔石配气胀轴。4.自主打断、驻车之后快乐选用，预送推断出收魔石再继续收料等功用。5.圆刀修边分切机Scope of applicationThis machine is mainly used for re-winding of various paper, paper-plastic composite, film and other decorative materials and packaging materials.

Performance and characteristics1. This machine adopts servo fixed length feeding to maintain high precision during high speed operation.2. PLC touch screen automatically counts meters, meters are automatically set.3. Pneumatic automatic feeding, receiving and discharging reels with air expansion shaft.4. Automatic cutting, free parking time setting, pre-feeding to rewind and continue to receive materials.5. Round knife trimming and cutting

核心手艺活因素 : Main Technical Parameters

形号 Model		CLFJ- B1400	CLFJ-B1600
板料长宽 MAX.Parent Web Width		1300mm	1500mm
放卷直径怎么算 Max.parent Web Diameter		Φ1200mm	Φ1200mm
收卷内径 Max.Rewinding Diameter		Φ500mm	Φ500mm
浓度 Max.Machine Speed		10-180m/min	10-180m/min
定长精度等级Fixed length accuracy		±5mm
总功效 Total Power		4.5KW	4.5KW
权重 Machine Weight		1300kg	1500kg
形态规格 Overall Dimensions 钓鱼任务线电压 Working Voltage		2600×2200×1600mm 三相320V50HZ	2800×2500×1600mm 三相380V50HZ
纸芯样式Paper core specification	25mm, 38mm,50mm等 (or according to your requirement)
