好用产值该设备第一用来各纸材，纸塑复合型类，膜类等装潢个人信息和标签印刷个人信息的复卷。

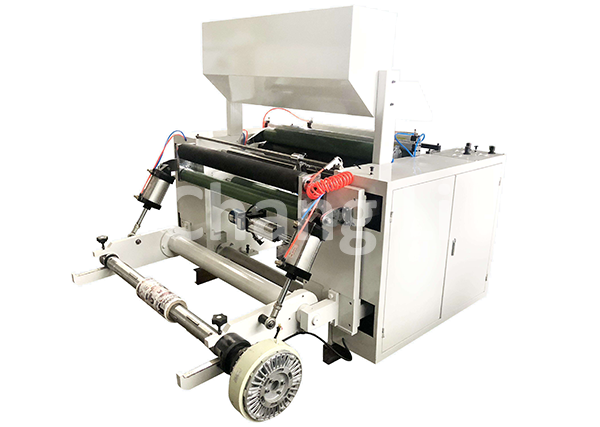

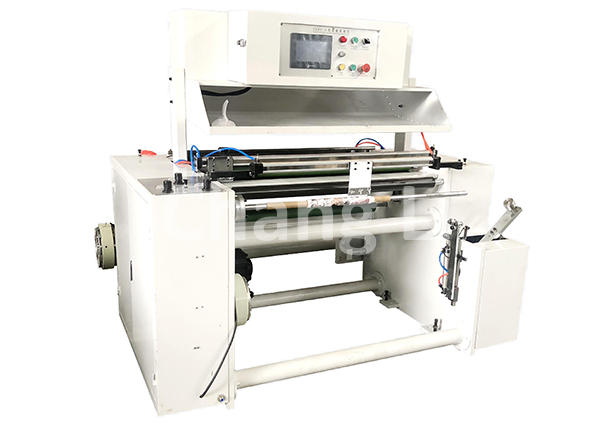

器能及独特 1.该设备采纳伺服电机定长放卷，在稳定正常运作中坚持学习高精确度。2.PLC触控屏屏自觉计米，米数自觉人设。3.气动系统式自主的送料，收、放魔石配气胀轴。4.相互断开、驻车时间随随便便因素，预送推断收秘药再不断收料等药用价值。Scope of applicationScope of applicationThis machine is mainly used for re-winding of various paper, paper-plastic composite, film and other decorative materials and packaging materials.

Performance and characteristics1. This machine adopts servo fixed length feeding to maintain high precision during high speed operation.2. PLC touch screen automatically counts meters, meters are automatically set.3. Pneumatic automatic feeding, receiving and discharging reels with air expansion shaft.4. Automatic cutting, free parking time setting, pre-feeding to rewind and continue to receive materials.

首要手艺参数 Main Technical Parameters

机器 Model		CLFJ-B800	CLFJ- B1000	CLFJ-B1300
自粘卷材总宽 MAX.Parent Web Width		800mm	1000mm	1300mm
放卷的直径 Max.parent Web Diameter		Φ600mm	Φ600mm	Φ600mm
收卷尺寸 Max.Rewinding Diameter		Φ300mm	Φ300mm	Φ300mm
传送速度 Max.Machine Speed		10-180m/min	10-180m/min	10-180m/min
定长gps精度Fixed length accuracy		±5mm	±5mm	±5mm
总耗油率 Total Power		2.3KW	3KW	4.5KW
图像 Machine Weight		1000kg	1200kg	1500kg
造型的尺寸 Overall Dimensions 作业电阻值 Working Voltage		2600×2000×1600mm 二相220V50HZ	2600×2200×1600mm 二相220V50HZ	2600×2500×1600mm 三相380V50HZ
纸芯规格尺寸Paper core specification	25mm, 38mm,50mm等 (or according to your requirement)
