重中之重技艺规格：Main Technical Parameters

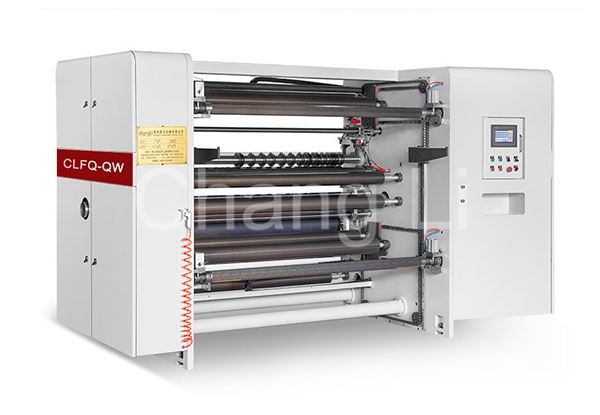

仪器 Model	CLFQ-QW1300	CLFQ-QW1600
zui大原料参数MAX. Width of raw material	1300mm	1600mm
zui大放卷直径怎么算Max.parent Web Diameter	Φ1500mm	Φ1500mm
zui大收卷的直径Max.Rewinding Diameter	Φ1000mm	Φ1000mm
zui高刷卡机传输速度 Max.Machine Speed	10-400m/min	10-400m/min
总效率 Total Power	25KW	29KW
使用 Machine Weight	4300kg	4800kg
款式的尺寸 Overall Dimensions	3200×2900×2000mm	3200×3200×2000mm
zui小分割屏幕宽度匹配 Min.Slitting Width	20mm	20mm

可按照产物请求 特别订制装备。

Can be made according to the product requires special equipment.

产物申明

合吃数量远程服务器混用于种类超特大型型防水防水卷材的分割，如30g/m2-400g/m2头层树脂牛皮纸、白纸盘、淋膜纸、铝泊、PVC可塑料、锡纸等防水防水卷材的分割、复卷等。身体及的特色1. 该设备认同异步电机驱动器汽车电器工程(矢量素材汽车电器工程)合理、拒绝锥度涨力，在期间卷取体例。冷水机认同直流变频调压，保证缩短中若衡运作。2. 主动地计米、提醒攻效。收卷悦纳自己A、B气胀轴构造，卸装调控方便快捷。3. 放卷进行光学会去主动纠偏批改作业标准，使不理论知料能般模切。4. 积极调刀体系建设（转换你要用的分割规模一下排好车床刀具），圆刀纵切废边积极排放标准装配工艺。 5. 汽压式自动不同料，无轴装卷。6.导轨式积极上下料装配线。

product manual

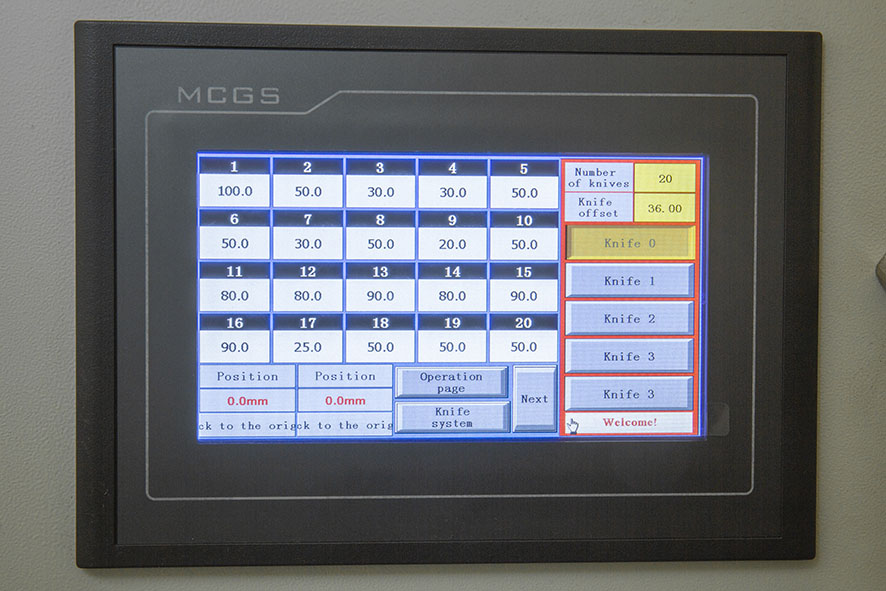

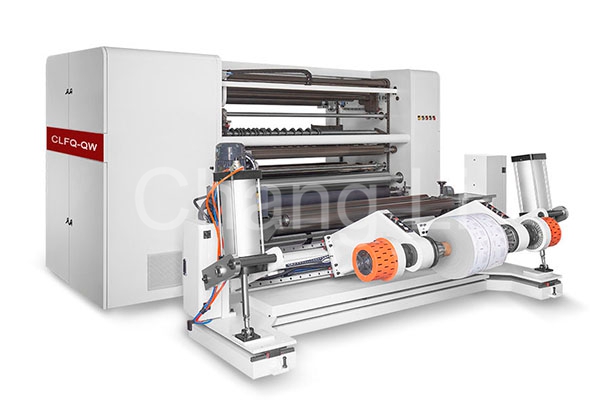

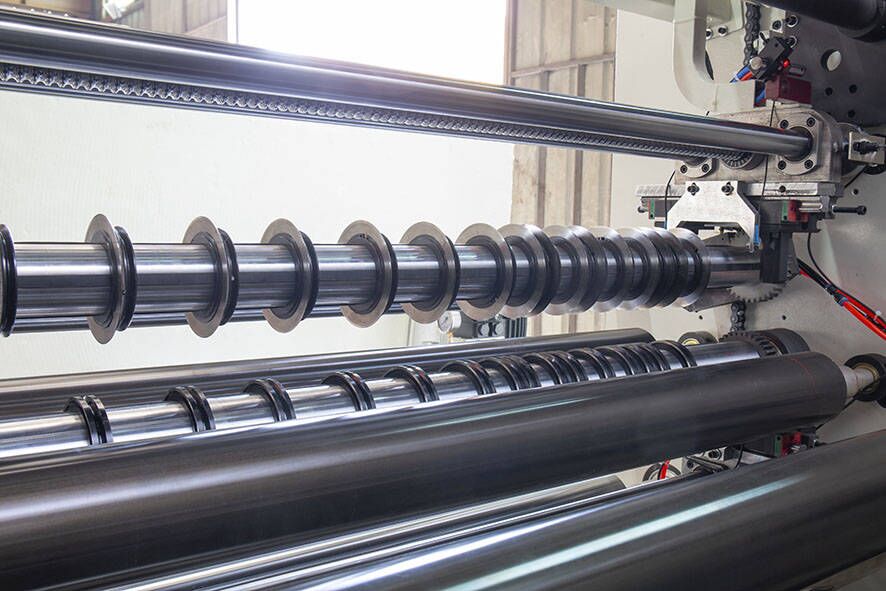

Scope of applicationThis machine is suitable for the slitting and rewinding of various super large coils, such as 30g/m2-400g/m2 kraft paper, white cardboard, coated paper, aluminum foil, PVC plastic, tin foil and other coils.performance and characteristics1. The machine adopts asynchronous servo motor (vector motor) control, automatic taper tension, and center winding mode. The host adopts frequency conversion speed regulation to maintain a balanced operation during acceleration.2. Automatic meter counting and alarm function. The rewinding adopts A and B inflatable shaft structure, which is easy to unload and operate.3. The unwinding adopts the photoelectric automatic correction system to make the irregular materials can be slit normally.4. Automatic tool adjustment system (input the slitting specifications you need to arrange the tools at one time), and the automatic discharge device for round knife longitudinal cutting waste.5. Hydraulic automatic loading and unloading, without shaft loading.6. Guide rail type automatic unloading device.
