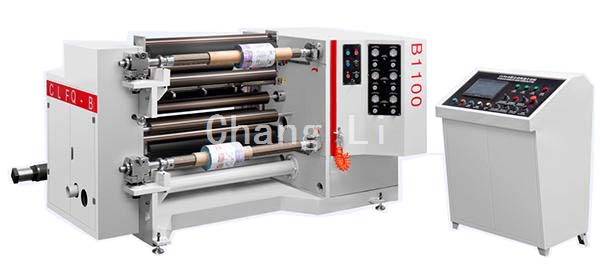

根本传统手工艺规格：Main Technical Parameters

机型 Model	CLFQ-B1100	CLFQ-B1300	CLFQ-B1600
质料宽度 MAX.Width of raw material	1100mm	1300mm	1600mm
放卷直径 Max.parent Web Diameter	Φ800mm	Φ800mm	Φ800mm
收卷直径 Max.Rewinding Diameter	Φ600mm	Φ600mm	Φ600mm
机器速率 Max.Machine Speed	10-350m/min	10-350m/min	10-350m/min
资料厚度 Thickness of raw material	0.008-0.2mm	0.008-0.2mm	0.008-0.2mm
总功率 Total Power	14KW	16KW	19KW
分量 Machine Weight	3800kg	4300kg	4800kg
形状尺寸 Overall Dimensions	2650×2500×1350mm	2650×2750×1350mm	2650×3050×1350mm
分切宽度 Min.Slitting Width	圆刀Round Blade :30mm	直刀Razor Blade :30mm

可依照规定化合物恳请 个人定制配置。

ꦓCan be made according to the product requires special equipment.

声明及特色化:

1、该型分切机合适于分切PE、PP、PET,PVC等塑料薄膜，复合膜，

膜，数码膜、圈筒纸等。是透气膜、薄片两次精加工和数码彩盒工厂的远大抱负机器。2、组件由PLC整合规范（三矢量图有限公司）并使用触屏屏人与机器介面对组件停掉整合调控。3、放卷认同气动平衡踩刹车刹车系统器，由PLC主動算计卷径完成任务主動弹性规范。4、牵引带放肆由一部矢量图变频柜汽车电器驱动安装，提交恒线浓度放肆，并隔开多远收放卷弹性中的对方关系。5、收魔石容忍气涨轴收卷由二台失量直流变频空调机电工程自力驱动包，收卷涨力合理，依据收卷内直径，分割体积尺寸，修改涨力等基本参数，由PLC运算达到分手后涨力累加。（先选滑差气涨轴轴）6、收魔石压延机聚散得到手动配置，负担变大经过全过程调压阀放肆。7、放卷卸车料接纳孩子气涨轴卸车料，手动伸缩，料卷手动升降，卸车料友盒、合作高。8、放卷EPC纠编转配可透彻放肆激光切割端面定位精度。9、模切宽容圆刀直刀模切转配，一端环境整洁，有边废品风送。10、零件及运转情况由一起带、一起轮为传动装置体例，履行义务与卡紧得到气动平衡体例11、带动导辊：静匀衡铝和金导辊，外表面泡软处理 12、标准配备开始缓解、停车防松、计米定长，定速、卷径运算评分切功较。13、标准体系满足极致的机、电、气一梯化建议，并悦纳自己完善的加固妙招。

Description and characteristics:

1. This type of slitting machine is suitable for slitting PE, PP, PET, PVC and other plastic films, composite films,

🐼Film, color film. It is the ideal model for film and sheet secondary processing and color printing packaging enterprises.

ℱ2. The whole machine is controlled by PLC (three vector motor) and uses the touch screen man-machine interface to carry out centralized operation of the whole machine.

ꦛ3. The unwinding adopts the start brake brake, and the automatic calculation of the coil diameter is realized by the PLC.

🍎4. The traction control is driven by a vector variable frequency motor to achieve constant line speed control and effectively interrupt the interaction between the tension of the rewinding and unwinding.

🦩5. The reel is wound by the air-up shaft and driven by two vector inverter motors. The winding tension control is based on the winding diameter, the thickness of the slit, the tension and other parameters. The automatic tension is incremented by the PLC operation.（Optional Differential Air Shaftrs）

🐻6. The take-up reel is clutched with a pneumatic device, and the pressure is controlled by a pressure regulating valve.

🎃7. The unwinding loading and unloading material adopts the gas-up shaft loading and unloading material, pneumatic locking, pneumatic lifting of the material roll, convenient loading and unloading, and high efficiency.

༺8. The unwinding EPC correction device can accurately control the end face precision.

༒9. The cutting machine adopts a round knife straight knife slitting device, the end surface is neat, and there is a side scrap air supply.

🐠10. The whole machine is driven by synchronous belt and synchronous wheel, and pneumatically operated by locking and locking.

𓄧11. Traction guide roller: static balance aluminum alloy guide roller, surface hardening treatment

ཧ12. The system has the functions of starting buffering, parking anti-loose, metering length, constant speed, and coil diameter calculation.

𝔍13. The system has a complete integrated design of machine, electricity and gas, and adopts complete safety protection measures.
