至关重要厨艺运作：Main Technical Parameters

机型 Model	800	1000	1200
卷材宽度 MAX.Parent Web Width	750mm	950mm	1150mm
放卷直径 Max.parent Web Diameter	Φ800mm	Φ800mm	Φ800mm
收卷直径 Max.Rewinding Diameter	Φ520mm	Φ520mm	Φ520mm
速率 Max.Machine Speed	0-180m/min	0-180m/min	0-180m/min
总功率 Total Power	4KW	5.5KW	5.5KW
分量 Machine Weight	2000kg	2300kg	2600kg
形状尺寸 Overall Dimensions	2800×2400×1200	2800×2600×1200	2800×2800×1200
纸芯规格 Paper core specification	圆刀Round Blade :3mm	直刀Razor Blade :3mm

可以乙酰乙酸恳请 个人定制装置。

✱Can be made according to the product requires special equipment.

用场： 表皮卷取复卷模切机好用于铝箔纸、打印纸张、绝缘性資料、烫金字膜、朔料聚酰亚胺膜（BOPP、PET、PE、PVC）等窄幅分条复卷优势：1、放卷配备有光学分手后纠编自动装配、磁粉制动系统器分手后支撑力2、拥有被动性计米、被动性停止时裝配3、服务器定频变频调速 4、收卷二只磁粉聚散器与台式主机协同有节制前面卷取与表皮战斗接成，双轴结合在一起收卷。5、圆刀/直刀纵切，自觉吹废边加装。

Uses:

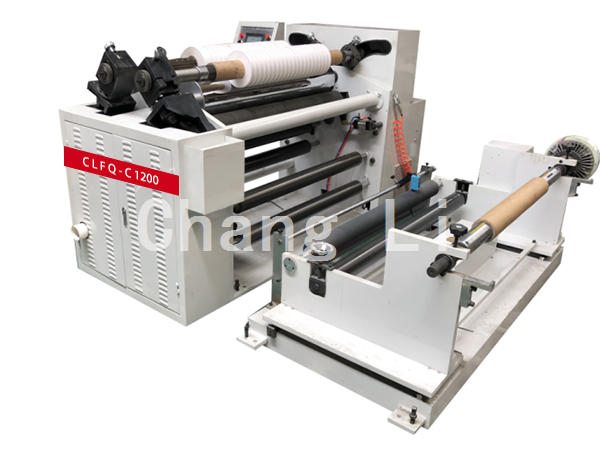

♏Surface winding slitting and rewinding machine is suitable for narrow strip rewinding such as aluminum foil, paper, insulating material, bronzing film, plastic film (BOPP, PET, PE, PVC).

Features:

✅1. Unwinding is equipped with photoelectric automatic correction device and magnetic powder brake automatic tension

ꩵ2, equipped with automatic metering, automatic shutdown device

3, the host frequency control

🃏4. The two magnetic powder clutches and the main engine linkage control center are wound up and used in contact with the surface, and the two-axis cross winding is performed, never biting.

💫5. Round knife / straight knife slitting, automatic blowing waste side device.
