前提一技之长因素：Main Technical Parameters

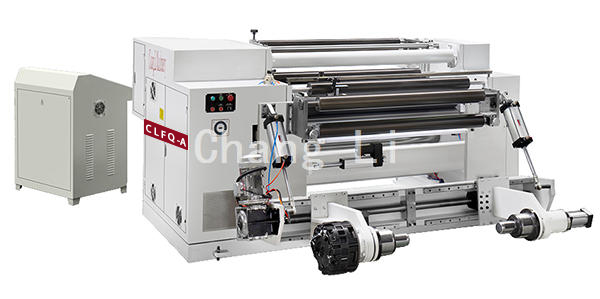

机型 Model	CLFQ-A1300	CLFQ-A1600
质料宽度 MAX.Width of raw material	1300mm	1600mm
放卷直径 Max.parent Web Diameter	Φ800mm	Φ800mm
收卷直径 Max.Rewinding Diameter	Φ600mm	Φ600mm
机器速率 Max.Machine Speed	10-350m/min	10-350m/min
资料厚度 Thickness of raw material	0.008-0.2mm	0.008-0.2mm
总功率 Total Power	16KW	19KW
分量 Machine Weight	4300kg	4800kg
形状尺寸 Overall Dimensions	2650×2750×1350mm	2650×3050×1350mm
分切宽度 Min.Slitting Width	30mm

可通过生成物要求 制造准备。

ꦡCan be made according to the product requires special equipment.

申明及特色:

1、该型分切机合适于分切PE、PP、PET,PVC等塑料薄膜，复合膜，

膜，数码膜、圈筒纸等。是溥膜、薄片再次制作和数码内包装企业公司的豪情壮志设备。2、部件由PLC集控制（三失量机电工程专业）并接受手触屏组排游戏界面对部件终止集调控。3、放卷接受汽动踩刹车制动系统器，由PLC拒绝斤斤计较卷径达成拒绝弹性有节制。4、腰椎牵引有放肆由一架矢量图变频器机电工程专业驱动软件，成功恒线频率有放肆，并相隔绝离收放卷支撑力期间的相爱的人会影响。5、收秘药接纳孩子气涨轴收卷由二台失量定频电气自动化自力驱程，收卷张度控制，根据收卷宽度，分切机宽度，设置张度等性能，由PLC运算完成任务主动的张度逐渐增加。（先选滑差气涨轴）6、收法杖高低不平压延机聚散进行液压装配图，压为具体依靠的时候调压阀吃妻上瘾。7、放卷用无轴运输料，气动系统式夹紧，电动三轮调宽度，料卷气动系统式起降，运输料便利性、效力待定高。8、放卷EPC纠编装配工艺可精确度高规范外圆导致精度。9、分割接纳孩子直刀分割裝配，外圆洁净，有边废弃物风送。（原纸需进货圆刀分割裝配）10、零件图由同步软件操作带、同步软件操作轮为齿轮变速箱体例，执行与伸缩尊重气动式体例11、牵引器导辊：静义均铝合金板属导辊，表皮软化剂加工 12、装修标准符合运行保护、停车防松、计米定长，定速、卷径运算平均分配切营养价值。13、模式遵循圆满的机、电、气分立式化指导思想，并容纳完善的保护方案。

Description and characteristics:

1. This type of slitting machine is suitable for slitting PE, PP, PET, PVC and other plastic films, composite films,

🐻Film, color film, web, etc. It is the ideal model for film and sheet secondary processing and color printing packaging enterprises.

𓂃2. The whole machine is controlled by PLC (three vector motor) and uses the touch screen man-machine interface to carry out centralized operation of the whole machine.

ꦅ3. The unwinding adopts pneumatic brake brake, and the automatic tension control is realized by PLC automatically calculating the winding diameter.

꧅4. The traction control is driven by a vector variable frequency motor to achieve constant line speed control and effectively interrupt the interaction between the tension of the rewinding and unwinding.

𒉰5. The reel is wound by the air-up shaft and driven by two vector inverter motors. The winding tension control is based on the winding diameter, the thickness of the slit, the tension and other parameters. The automatic tension is incremented by the PLC operation.（Optional Differential Air Shaftrs）

ꦛ6. The upper and lower pressure roller of the take-up reel adopts a pneumatic device, and the pressure is controlled by a pressure regulating valve.

▨7. Unwinding with shaftless loading and unloading material, pneumatic locking, narrow electric width adjustment, pneumatic lifting of material roll, convenient loading and unloading, high efficiency.

♔8. The unwinding EPC correction device can accurately control the end face precision.

💎9. The slitting adopts the straight knife slitting device, the end face is neat, and the side scrap is sent by wind. (Paper needs to purchase round knife slitting device)

🌃10. The whole machine is driven by synchronous belt and synchronous wheel, and pneumatically operated by locking and locking.

🐻11. Traction guide roller: static balance aluminum alloy guide roller, surface hardening treatment

ಞ12. The system has the functions of starting buffering, parking anti-loose, metering length, constant speed, and coil diameter calculation.

💟13. The system has a complete integrated design of machine, electricity and gas, and adopts complete safety protection measures.
